Maytronics - Cleaner Parts - Wave 60

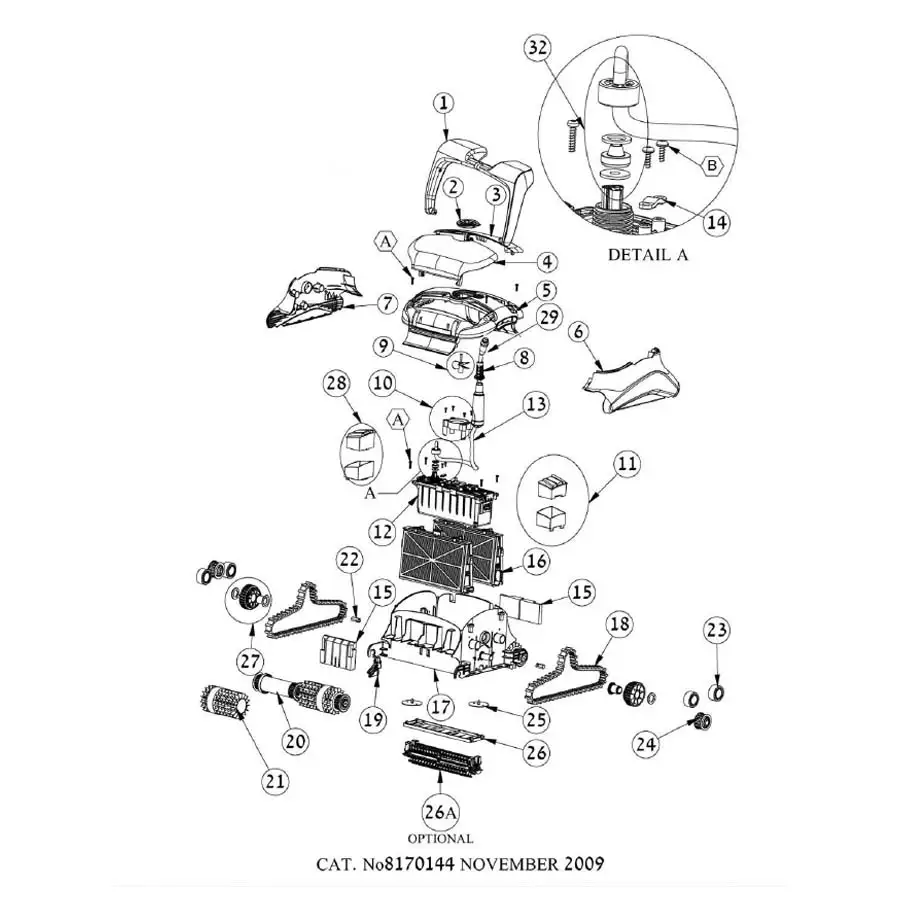

Below you'll find a consolidated list of the replacement parts for the Maytronics Wave 60 pool vacuum.


Central WarehouseIn Stock

Please Note: Products might not be available at all locations.

Maytronics - Cleaner Parts - Wave 60

  KeySKU / Part #NamePrice
  02PTS-99807053IMPELLER COVER FOR MTC8 BLACK5.99  5.99
  08PTS-9980880SUPPORT FOR CABLE 20105.99  5.99
  09/12(01)PTS-9995266IMPELLER & SCREW - BLACK18.99  18.99
  10/12(02)PTS-9991044ASSYIMPELLER CYLIN DER+SCREWS ASSY3.99  3.99
  11PTS-9991074ASSYUPPER FLOAT & HOUSING - RIGHT7.99  7.99

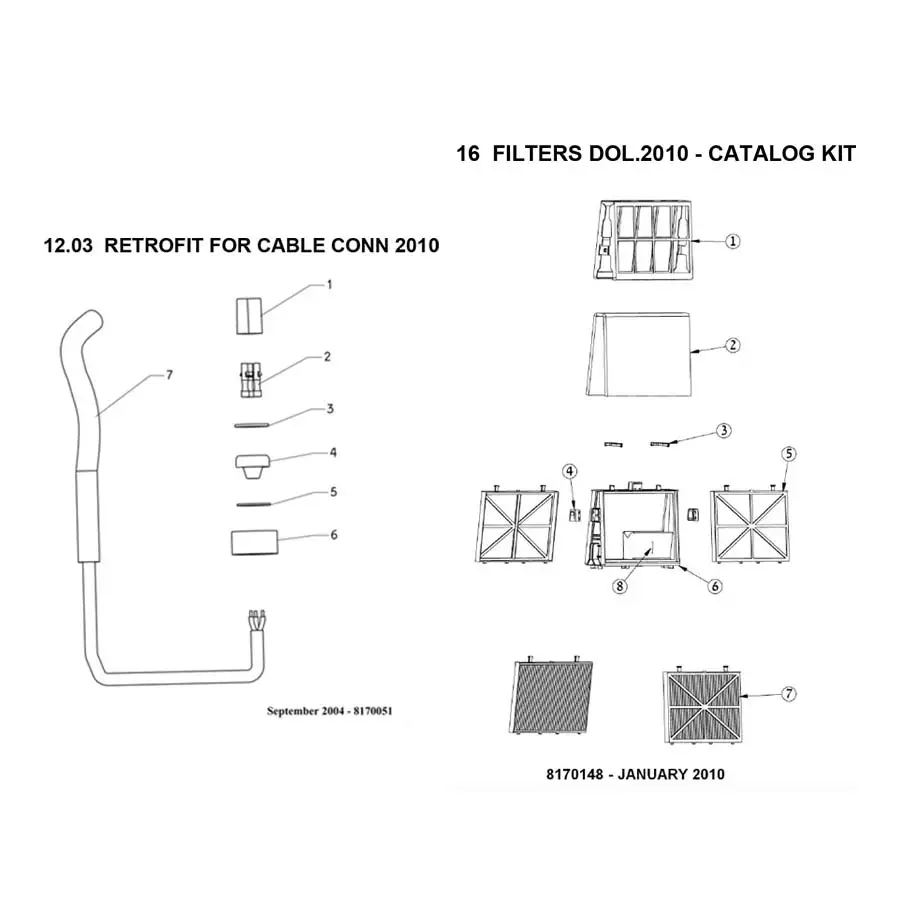

  12(03)PTS-9991273RETROFIT FOR CABLE CONN 2010 M4,M5,WAVE65,WAVE9024.99  24.99
  12(04)PTS-5588902IMPELLER MOTOR HOLDER11.99
  12(05)/14PTS-9982332CABLE HOLDER FOR DIAGNOSTIC BASIC3.99  3.99
  12(06)PTS-9980726COVER LOCKER LENGTH SIDE3.99  3.99
  12(07)PTS-9980727COVER LOCKER SHORT SIDE3.99  3.99
  12(14)PTS-9995009ELECTRONIC CARD DYN 2010253.99  253.99
  12(19)PTS-9991219ASSYDRIVE MOTOR 2010 ASSY223.99  223.99
  12(A/B)PTS-3379440ASCREW KA50X12 A2 WN1412 - MTIL1.99  1.99

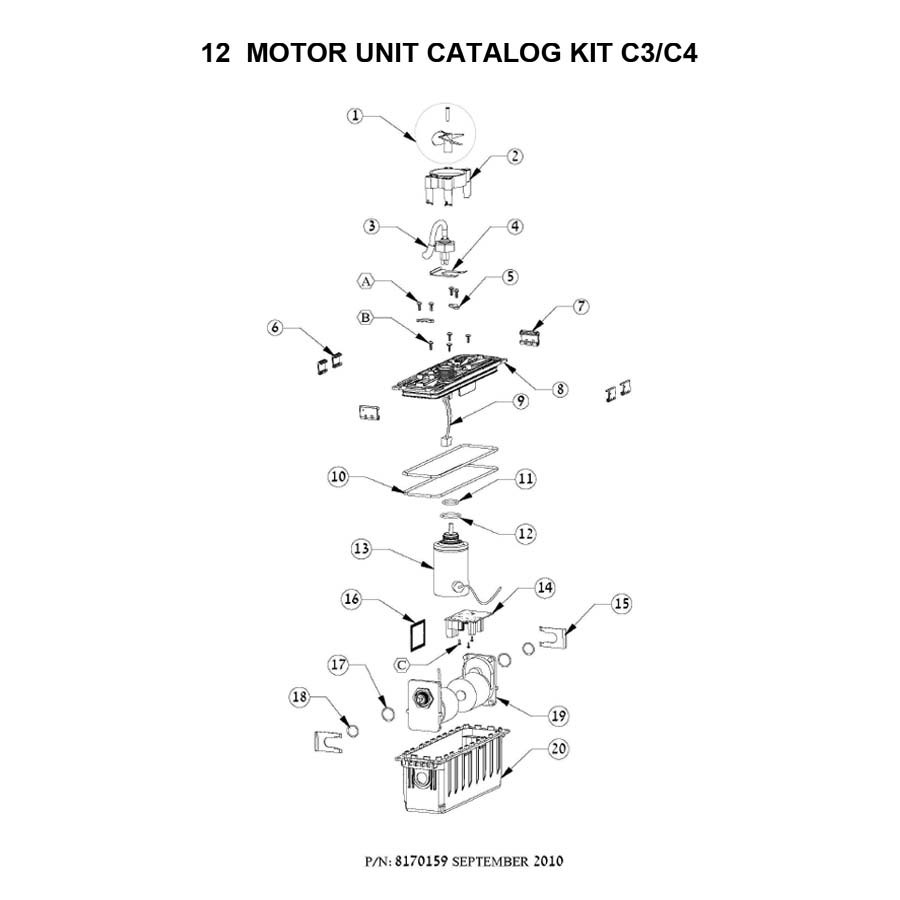

  12(MU2)PTS-9995377EXMOTOR UNIT782.99  782.99
  13(01)PTS-9995873DIYCABLE (W/ SWIVEL, 3 WIRE) - 60 FEET586.99  586.99
  13(02)PTS-9995791DIYCABLE SWIVEL DYN 1.2M DIY97.99  97.99
  16(03)PTS-9980731CARTRIDGE LOCKING HOOKS FOR M41.99  1.99
  16(04)PTS-9980753FILTER KIT LOCKING ADAPTOR1.99  1.99
  16(05)PTS-9991433ASSYFINE FILTERS, LARGE (SET OF 4)120.99  120.99
  16(06)PTS-9980733FILTER AND CARTRIDGE HOLDER13.99  13.99
  16(07)PTS-9991432ASSYULTRA-FINE FILTERS, LARGE (SET OF 4)112.99  112.99
  16(08)PTS-9980891NON RETURN FLAP M4 20109.99  9.99
  17PTS-9980702BODY FOR PULIT 201077.99  77.99
  18PTS-9985006TRACKS, LONG - GREY39.99  39.99

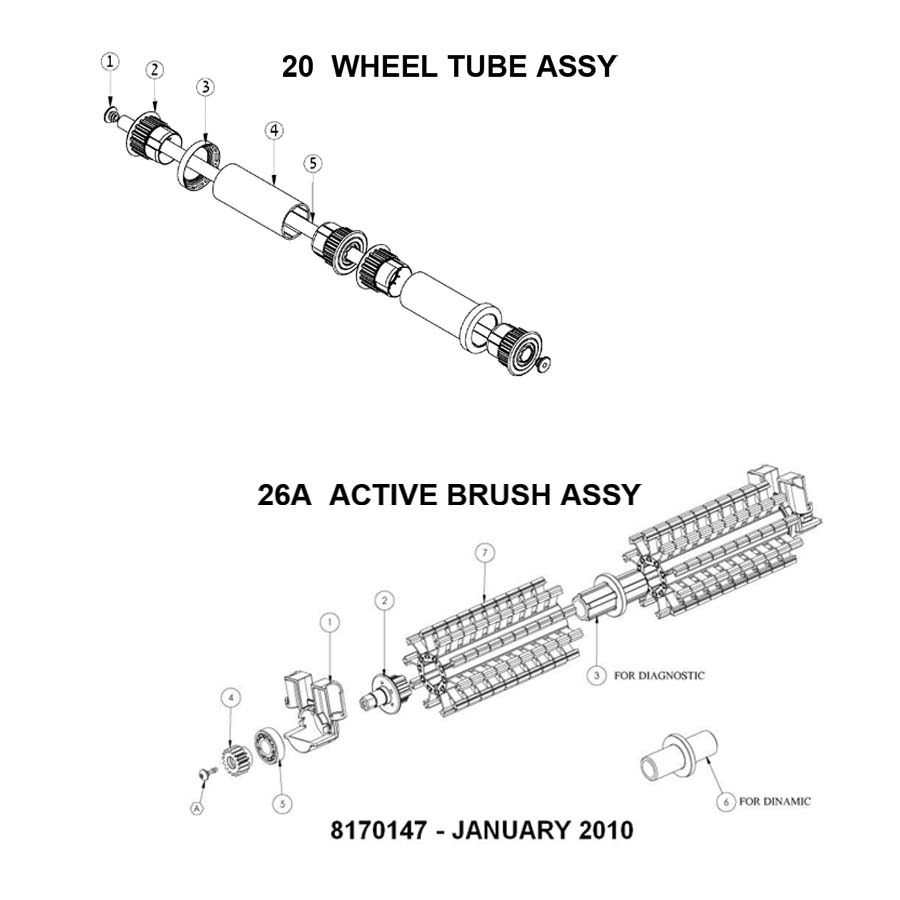

  20PTS-99955956ASSYWHEEL TUBE ASSY97.99  97.99
  20(01)PTS-9982275CORK FOR INNER WHEEL TUBE D.BASI1.99  1.99
  20(02)PTS-3884073ASSYWHEEL BEARING21.99  21.99
  20(03)PTS-3885000WHEEL BEARING STOPPER RING1.99  1.99
  20(04)PTS-6101912PVC TUBE FOR DYN.TT WHEEL ASSY7.99  7.99
  20(05)PTS-6101914WHEEL TUBE DIAG. BASIC7.99  7.99

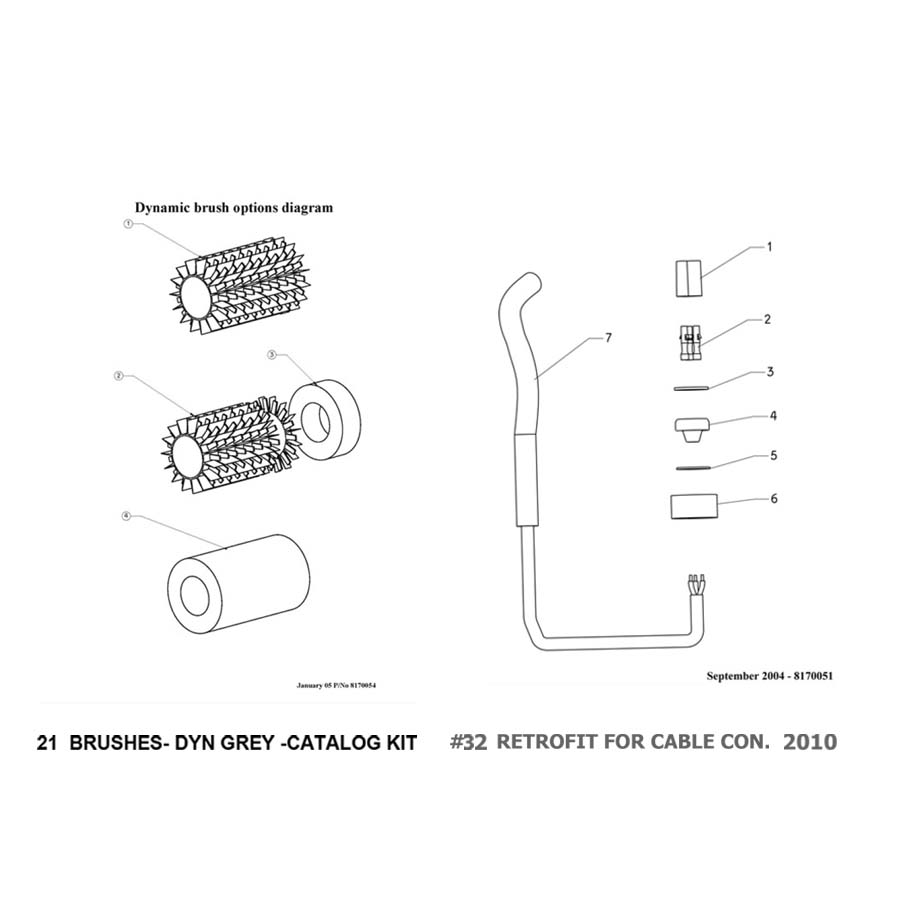

  21(01)PTS-6101635BRUSH - GREY (NON-CB)19.99  19.99
  21(02)PTS-6101656BRUSH - GREY (CB)23.99  23.99
  21(03)PTS-6101611CLIMBING RING16.99  16.99
  21(04)PTS-9995560ASSYBRUSH -WONDER BRUSH-PAIR DYNAMIC234.99  234.99
  21(05)PTS-99955340ASSYWHEEL ASSY DYN BASIC CB GREY136.99  136.99
  21(06)PTS-99955360ASSYWHEEL TUBE ASSY GREY WB104.99  104.99
  22PTS-3865005HEXAGON DRIVE ADAPTOR9.99  9.99
  23PTS-3884997GUIDE WHEEL11.99  11.99
  PTS-3883645DRIVE PULLEY- TT32.99  32.99
  PTS-9991046ASSYRAPID DRAIN FLAPS (SET OF 2)3.99  3.99
  PTS-9980700ACTIVE BRUSH COVER1.99  1.99
  PTS-9995541ASSYACTIVE BRUSH ASSY175.99  175.99
  PTS-9980756BRUSH TUBE CONNECTOR DYN7.99  7.99
  PTS-9980736ACTIVE BRUSH97.99  97.99
  PTS-9991594HOLDER FOR ACTIVE BRUSH ASSY12.99  12.99
  PTS-9991073ASSYUPPER FLOAT & HOUSING - LEFT7.99  7.99
  PTS-9985048CABLE CONN.THREE PIN3.99  3.99
  PTS-1811404CABLE CONNECTOR1.99  1.99
  PTS-9985027PLASTIC WASHER 7MM X 2MM1.99  1.99
  PTS-3861002O-RING FOR CABLE CONN.1.99  1.99
  PTS-9980025WASHER-INSIDE DIA. 13MM1.99  1.99
  PTS-3379720ASCREW - KA50X20 - MTIL1.99  1.99

A consolidated list of the replacement parts for the Maytronics Wave 60 pool vacuum. If you're having trouble finding the parts you need, feel free to reach out to one of our representatives in the contact section below.
